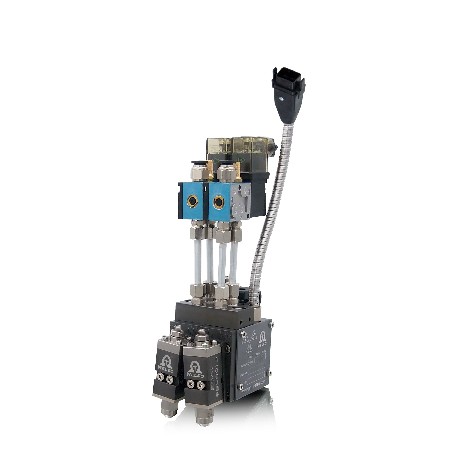

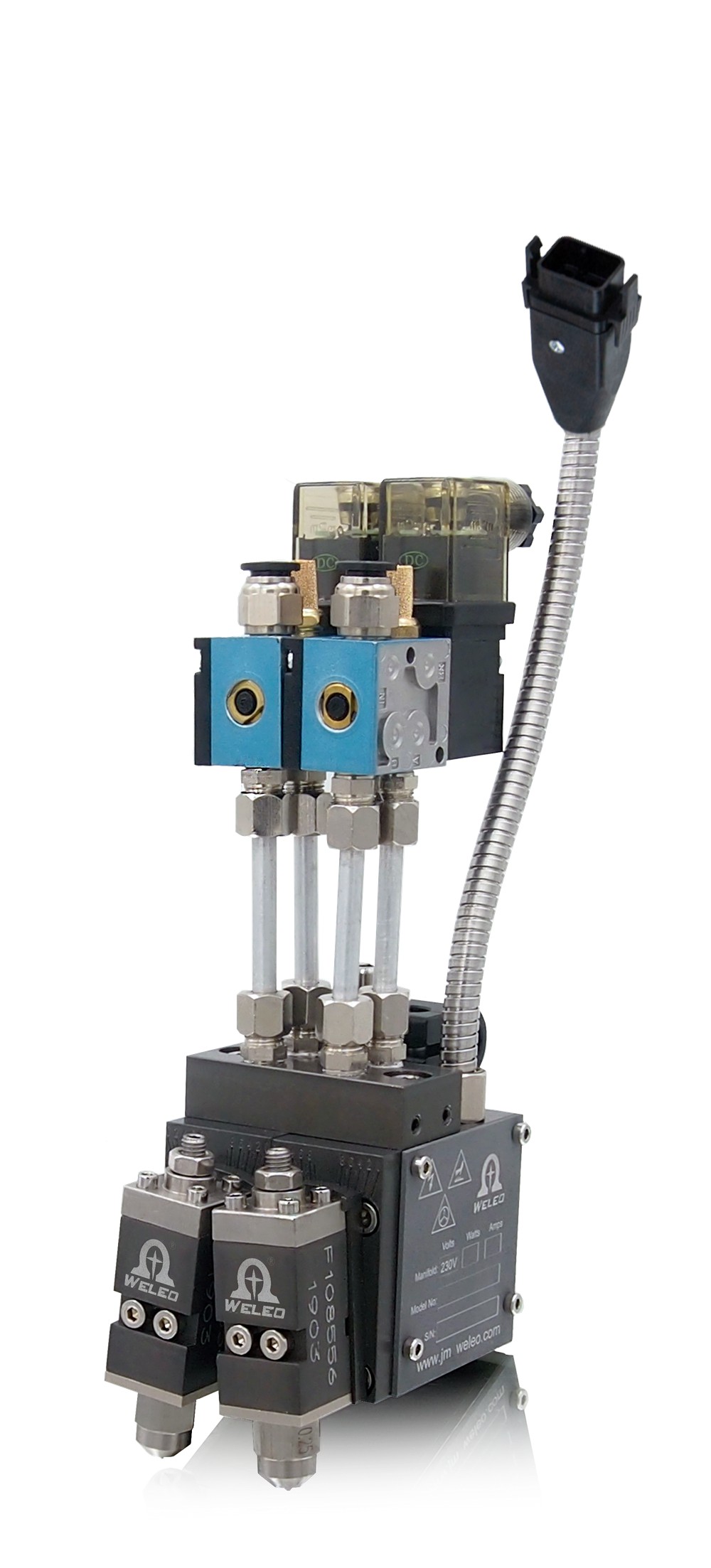

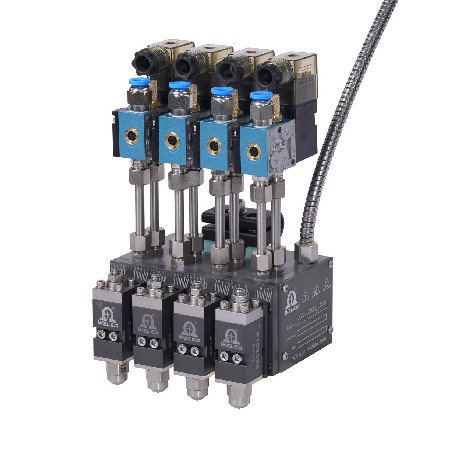

EM-R Rotate Pitch Dispensing Applicators
2025-10-22 10
To meet the industry pain point of frequent adjustment of production dimensions, the EMR series hot melt adhesive spray gun stands out with innovative design, providing efficient bonding solutions for packaging, electronic assembly, and box pasting manufacturing scenarios. Lightweight design makes operation and installation more convenient, especially suitable for mobile production lines and small spaces. The module of the spray gun can be used for "independent/synchronous" dual spraying mode. When controlled independently, it can accurately locate micro glue points and adapt to both spraying points and strip spraying simultaneously. In synchronous mode, multiple nozzles work together, and one gun can swing to support multiple specifications of nozzles. The width of the glue strip (10-36mm) can be adjusted in real time by rotating the module. The spray gun is equipped with a built-in 304 stainless steel filter to prevent impurities from blocking and ensure stable glue dispensing.
Overview:
Air Open Air close Self-cleaning module accurately cut-off

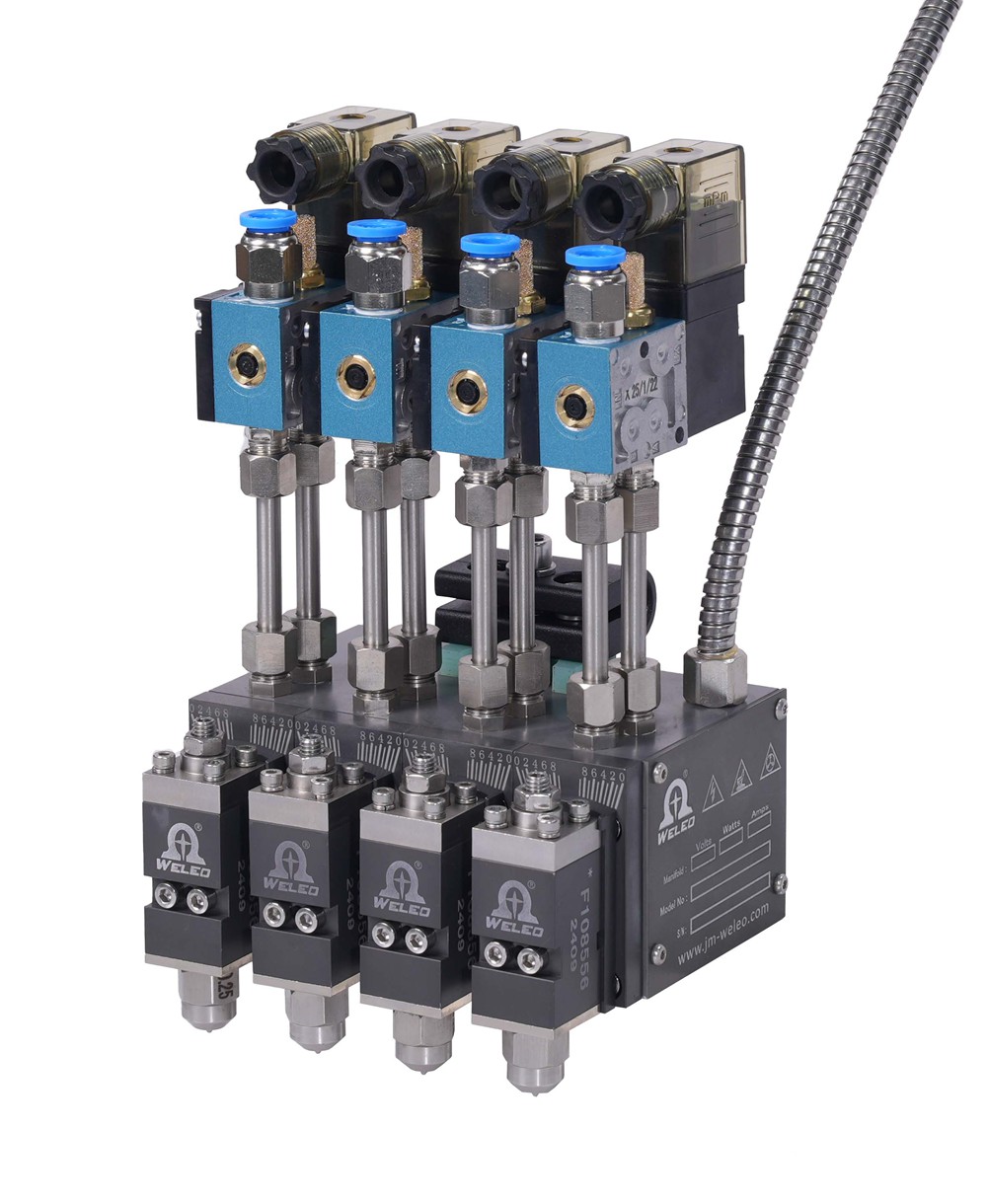

Two module with nozzles can be independ control strip and bead spray
Two module with nozzles can be independ rotated to adjust the spray distance
Pt100 or Ni 120 temperature sensor selection available
Module with self-cleaning nozzle ,orifiice ?0.2-0.55mm selection available
Built-in replaceable screen filter kit
