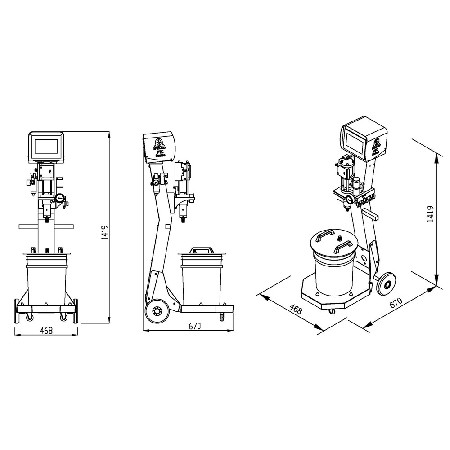

CGP Cold Gluing Pump Dispensing System
2025-10-22 13

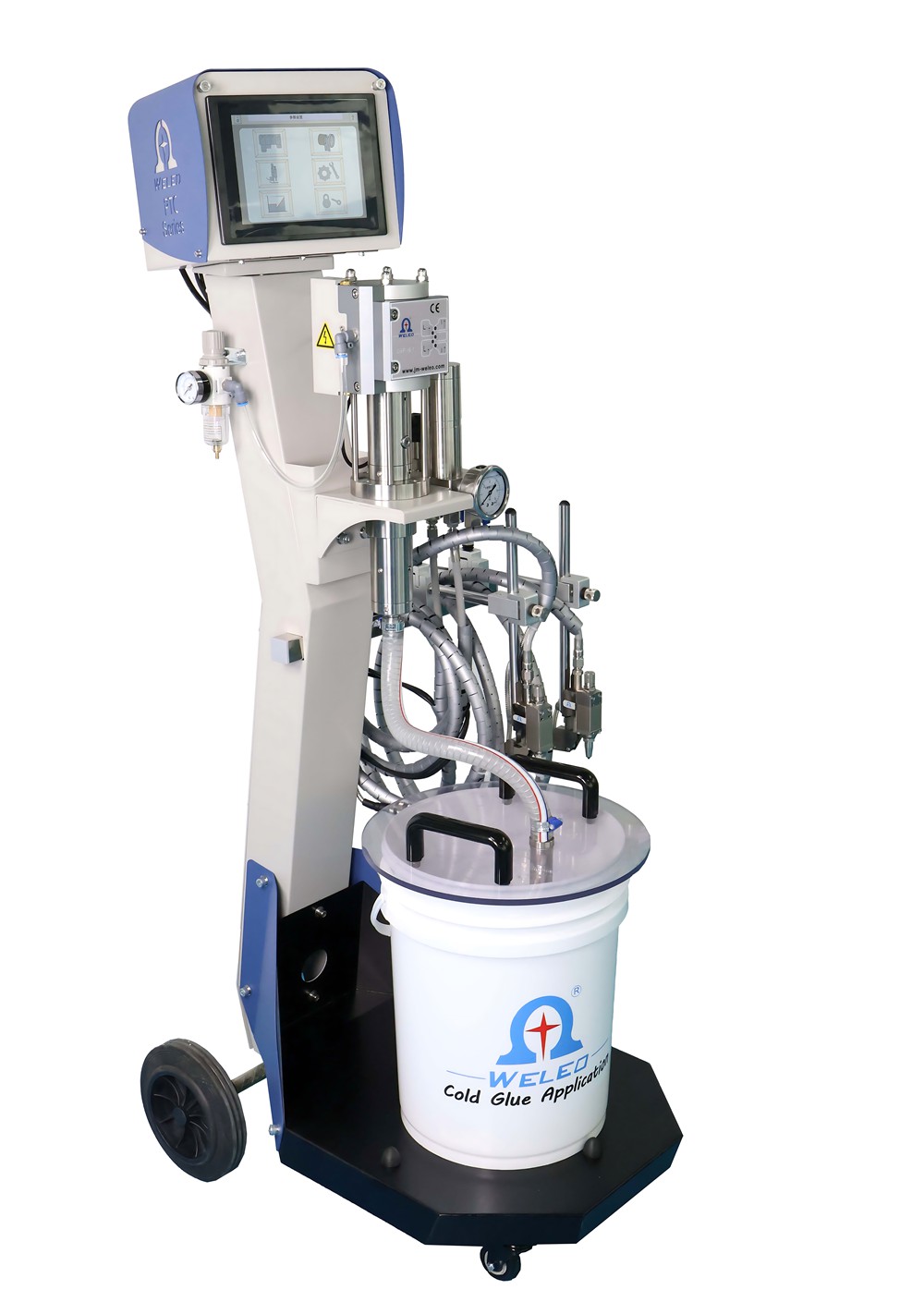

Our cold glue dispensing system features an all-stainless steel piston pump with electronic commutation. The pressure transducer enables real-time pressure adjustment via control panel. It achieves precise thread-like dispensing with encoder positioning (±0.1mm accuracy) at speeds up to 300m/min. The dual-filter design (pump & manifold) ensures clean glue flow. Ideal for carton sealing, box forming and product assembly, this durable system boosts packaging efficiency with intelligent control.
Overview:

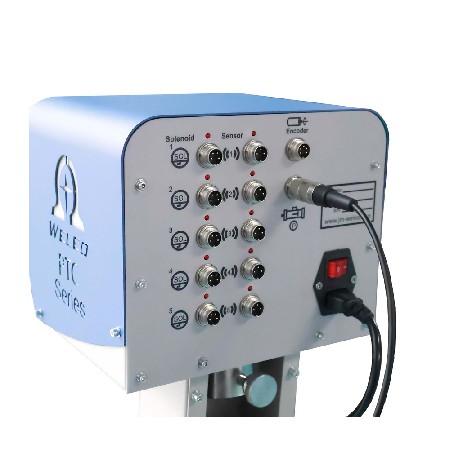

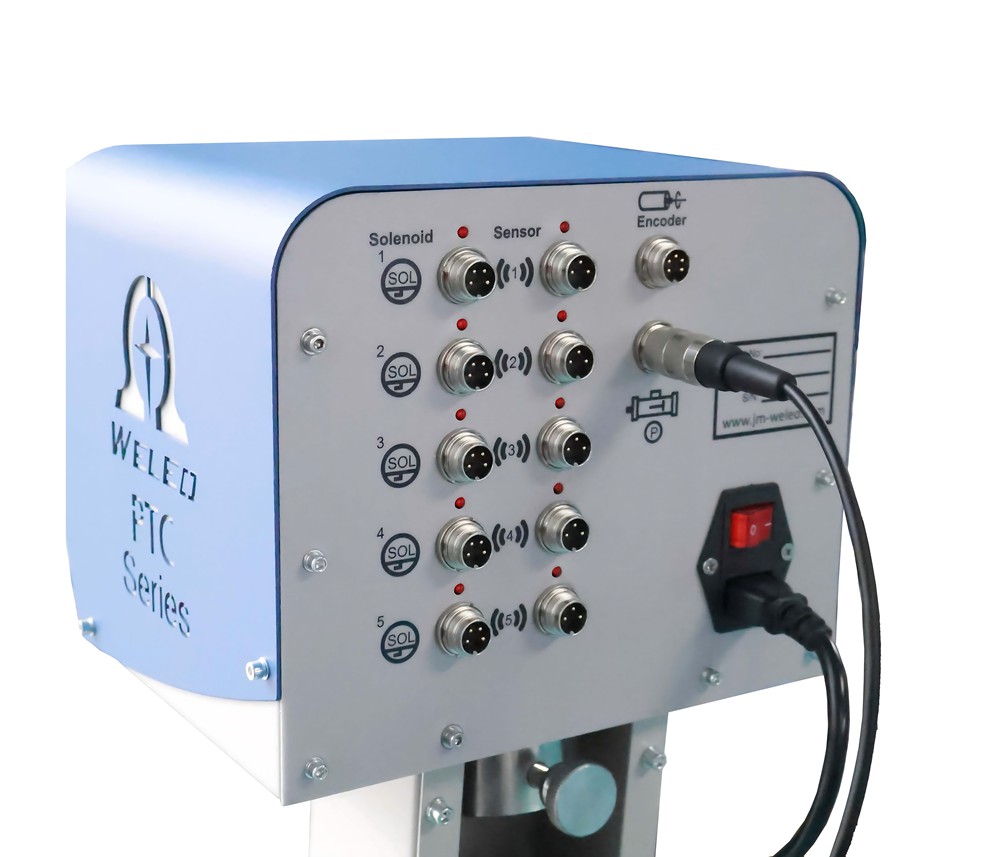

8” HMI high resolution touch screen
5 or 10 Channel Spray Pattren Control
Glue Spraying Pressure Control
Glue Pressure Gague
Large Screen Spray Gun Filter Tube Glue
Pressure Transducer

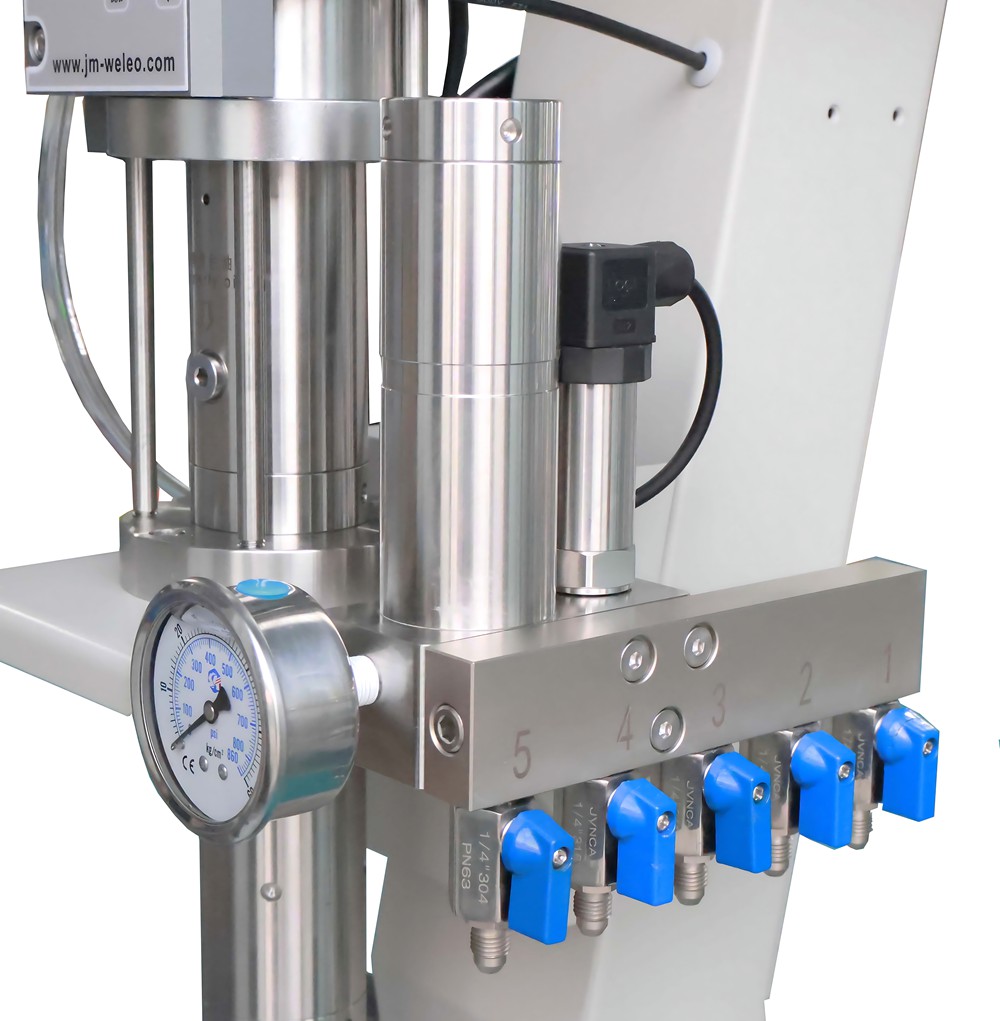

Single Ball Valve Control Each Gun on/off

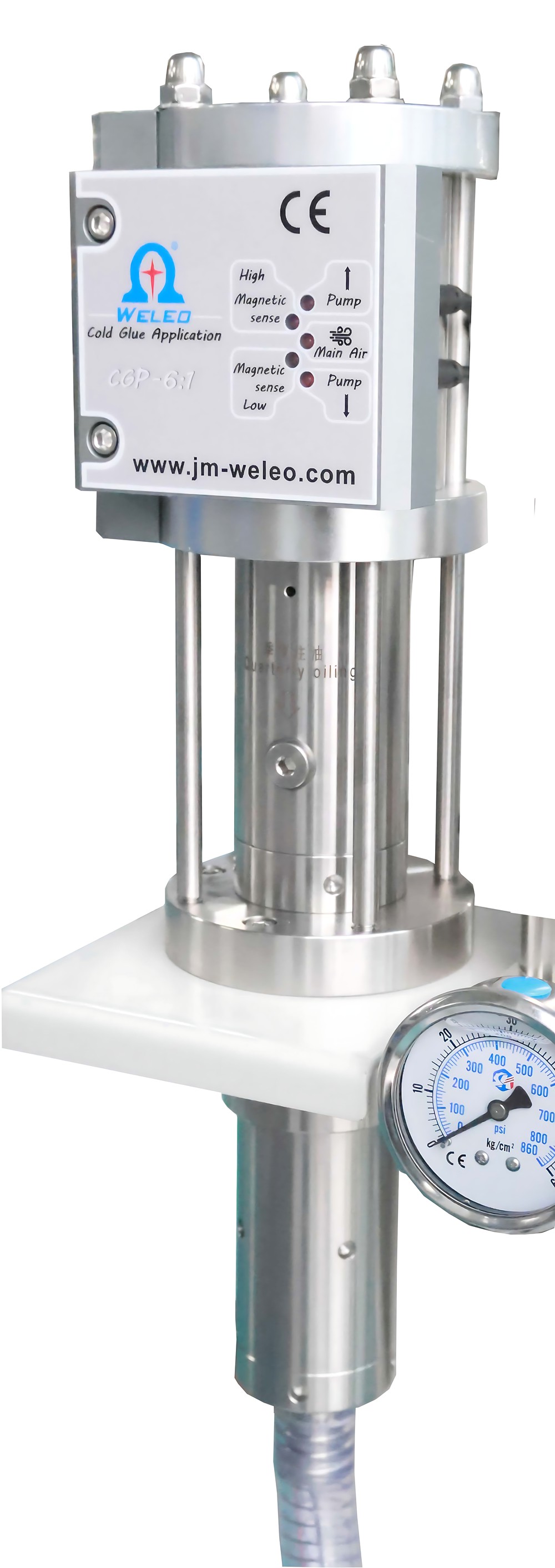

Piston Pump Ratio 6:1
Electronic Magnetic Stroke
Main Air Regulator Filter Kit
Easy Maintenance Design
LED Light Indicator Pump Sate

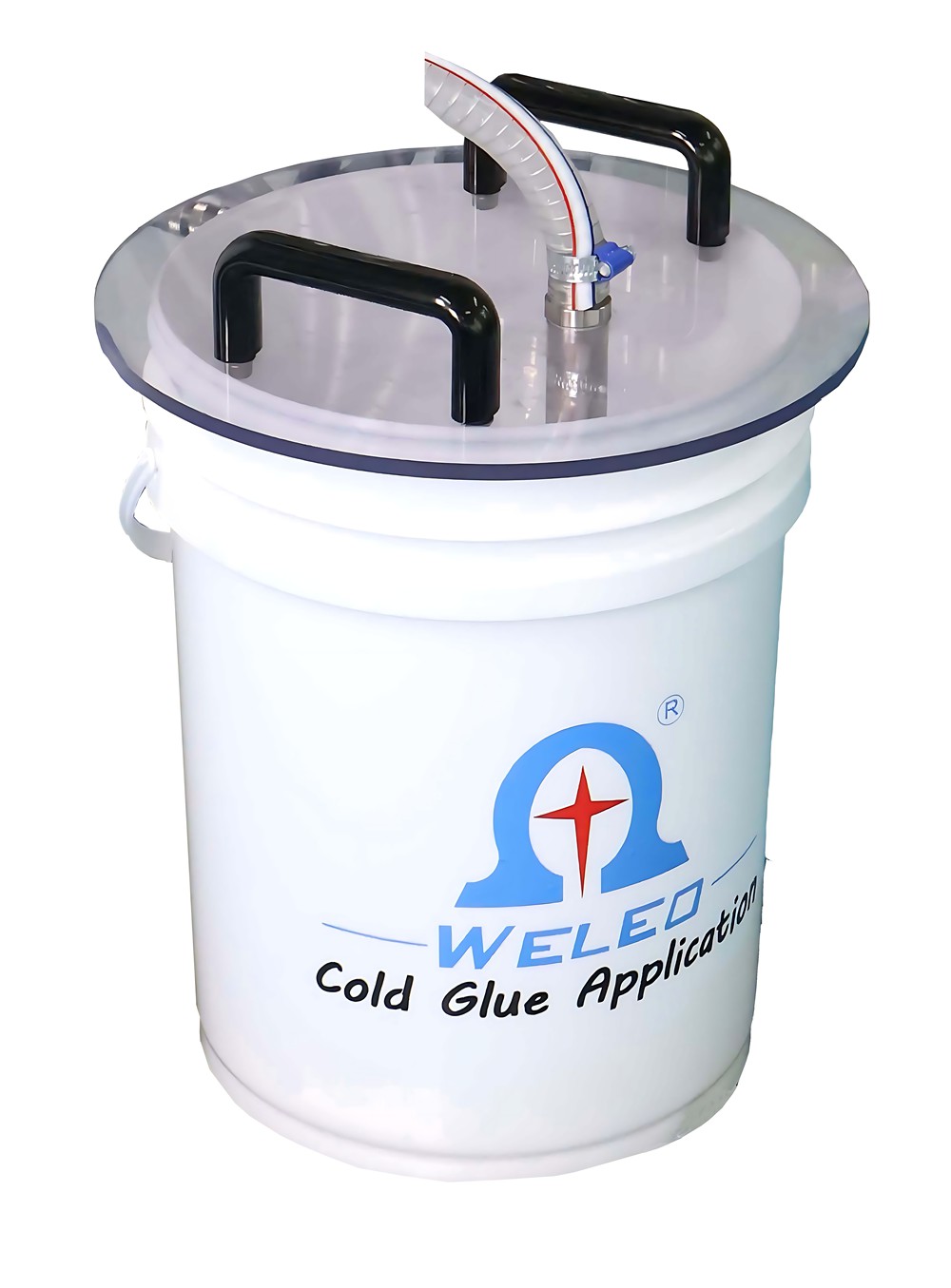

20 Liters Feed Pail
Suction Pipe with Check Valve
Pipe with Primary Filter Screen
